30mm 25mm Kraft Paper Metal Round Base Duct Work Mild Steel Cup Head CD Weld Pins

Brand Name : HUIHAOCUSTOM

Model Number : CUP HEAD-30/25

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 10000SETS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 7000000 SETS PER MONTH

Delivery Time : 10 WORK DAYS

Packaging Details : PP BAGS+CARTON+PALLET/CASE

Name : 25/30 cup head CD weld nails

pin Finished : COPPER/ZINC PLATING

Pin diameter : 2.7mm, 3mm, 3.4mm

Pin length : 19mm, 25mm, 38mm, 45mm, 50mm, 63mm

cup head base : kraft paper 25mm/30mm

OEM/ODM : to be your request

Company Type : factory

Relate tool : WELD GUN

Contact Now

30 25mm Kraft Paper Metal Round Base Duct Work Mild Steel Cup Head CD Weld Pins

Specification of the cup head CD weld pins

Photo CD CUP HEAD PINS
30mm 25mm Kraft Paper Metal Round Base Duct Work Mild Steel Cup Head CD Weld Pins Part No. pin diameter round base size pin Length
HH-12 2.7mm 1-1/2" Stnd up to 6"
HH-10 3.4mm 1-1/2" Special Order
ZG-14 2.0mm 1-3/16" Up to 2-1/2"
ZG-12 2.7mm 1-3/16" Stnd up to 6"

Different types of the cup head weld pins

standard types details of standard
For US, Canada the standard washer diameter is 1.187"(30mm), the pin diameter is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8"
For EU countries the washer diameter is 30mm, 38mm, The pin diameter is 12GA(2.7mm) and 14GA(2.0mm).
noted the washer can with or without kraft paper, the pin can be with or without plastic sleeve. the length from 9.5mm to 140mm. we also accept the special order for other lengths.

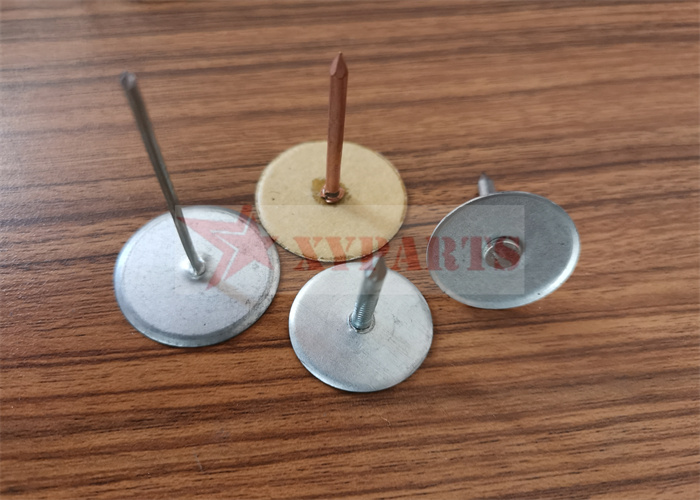

Images of the cup head CD weld pins

30mm 25mm Kraft Paper Metal Round Base Duct Work Mild Steel Cup Head CD Weld Pins

application equipments of cup head CD weld pins

recommended for pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm

30mm 25mm Kraft Paper Metal Round Base Duct Work Mild Steel Cup Head CD Weld Pins

Package details of cup head weld pins

12Gauge *2.5”cupped head pins 1000Pcs 26×26×18CM 5.5KG
12Gauge *4.5”cupped head pins 1000Pcs 26×26×32CM 7.5KG
14Gauge *2.5”cupped head pins 1000Pcs 26×26×18CM 4.5KG
14Gauge *4.5”cupped head pins 1000Pcs 26×26×32CM 6.0KG
25mm -self locking washers 2000Pcs 26×26×5.5CM 5.0KG
38mm -self locking washers 1000Pcs 26×26×5.5CM 3.8KG

30mm 25mm Kraft Paper Metal Round Base Duct Work Mild Steel Cup Head CD Weld Pins
